Dynamicroll

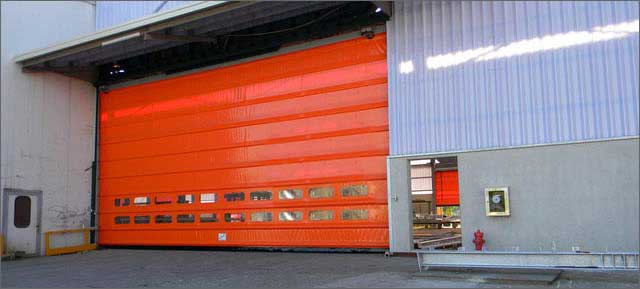

Dynamicroll High-speed doors are are self-repairing, meaning that if the door curtain comes out of their guides (for example, in the event of impact with a forklift) the system will automatically reset the curtain back into the guide on the next close cycle.

Dynamicroll columns are made from galvanised steel, or can be custom-ordered in stainless steel and painted various RAL colours. Modular construction allows easy interchange of door parts.

At the heart of the Dynamicroll door design is our innovative curtain edge that firmly holds the curtain into the side guides. If impacted, the curtain will release from the side guide and automatically reset on the next door cycle. Because there are no metal parts within the curtain design, damage is kept to a minimum.

Features & Benefits

• Self-repairing
• Motor with inverter controls allowing operating speeds up to 2.5 m/s
• Oli-free guides allows doors to withstand wind loads of up to 120 km/h (depending on door size)
• Minimal maintenance
• Quiet operation
• Self-touch bottom edge/bottom rail
• Resistive wireless safety edge
• Low level column mounted photocells

Dynamicroll Clean

Dynamicroll Clean High-speed doors are self-repairing, meaning that if the door curtain comes out of their guides (for example, in the event of impact with a forklift) the system will automatically reset the curtain back into the guide on the next close cycle.

Dynamicroll Clean columns are made from stainless steel. The motor is enclosed in the heading and comes as standard with a counter weight for emergency opening. Modular construction allows easy interchange of door parts.

At the heart of the Dynamicroll Clean door design is our innovative curtain edge that firmly holds the curtain into the side guides. If impacted, the curtain will release from the side guide and automatically reset on the next door cycle. Because there are no metal parts within the curtain design, damage is kept to a minimum. A double ballasted bottom edge ensures there is always a good seal to the floor.

Features & Benefits

• Up to 2.5 m/s opening speed
• 1 ph inverter drive control panels
• Self repairing curtain following impact
• Canopy and motor cover included
• 1700 g/m2 antistatic curtain
• 2 rows of vision as standard
• Frame and all covers are stainless steel as standard
• Simple modular design
• Counter weight as standard
• Quick lead times
• Proven reliable design
• Air permeability (12m3 / m2h – 50Pa)

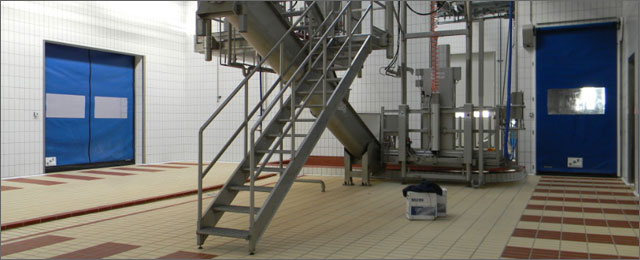

Dynamicroll Food High-speed doors are self-repairing, meaning that if the door curtain comes out of their guides (for example, in the event of impact with a forklift) the system will automatically reset the curtain back into the guide on the next close cycle.

Dynamicroll Food columns are made from stainless steel. These doors are designed for internal applications where hygiene is essential. Modular construction allows easy interchange of door parts.

At the heart of the Dynamicroll Food door design is our innovative curtain edge that firmly holds the curtain into the side guides. If impacted, the curtain will release from the side guide and automatically reset on the next door cycle. Because there are no metal parts within the curtain design, damage is kept to a minimum.

Features & Benefits

• Up to 2.5 m/s opening speed
• 1 ph inverter drive control panels
• Wireless resistitive safety edge
• Barrel diameter sensor in the heading for wet environments
• Self repairing curtain following impact
• Canopy and motor cover included
• 1300 g/m2 curtain with 12 standard colours
• 2 rows of vision as standard
• Frame and all covers are stainless steel AISI 304
• Simple modular design
• Manual release handle as standard
• Quick lead times
• Proven reliable design
• Helps to reduce heat loss and vermin
